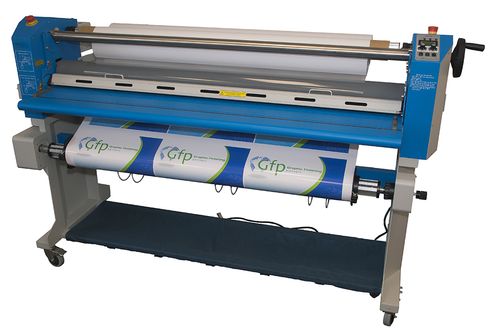

Gfp 563TH-4RS Top Heat Laminator

What’s the best way to make your production even better? Shorten film loading time? Make fewer film changes? Increase throughput speed? The 563TH-4RS does all that and more. Includes motorized rear rewind with rotary slitters for roll-to-roll applications
Brochure

Spend less time on set-ups and changeovers with swing-out supply shafts. 50% faster throughput and quick application changes save time, effort and money.

• Swing-out Quick-Grip supply shafts
• Drop-in Quick-Grip rewind shafts
• Photoelectric eye for safety
• Includes rear rewind with Rotary Slitters
• Swing-up feed table & 38" output height
• Metal Alloy heater reduces breakage
• 4.4" diameter rollers
• Roller gap measurement scale


• Laminating Width -  63"
• Roller Diameter - 4.5"
• Maximum Speed - 0-20ft/min
• Rear Rewind with Slitters - Included
• Roller Gap - 1"
• Maximum Temp - 140 F
• Heat Method - Metal Alloy Heater
• Tension Adjustment - Single knob
• Max. Roller Diameter - 8" OD (top); 16" OD (bottom)
• Power Supply - 120V 12A
• Foot Pedal - Included
• Stand with castors - Included
